Weighing terminals for filling and batching scales
Powerful. Fast. Customizable.
Scale mechanics and filling controller are both crucial parts determining the speed and accuracy of a filling facility. The W&M approved SysTec weighing terminals accelerate and optimize filling and batching processes for large-scale containers, e.g. barrels, plastic canisters, bags, big bags and IBC tanks. Regardless whether you batch powder, granules, pastes or liquids, even in potentially explosive atmospheres – SysTec offers the right weighing terminal for every application.
The controller will connect to load cells or scales of all types and weight ranges. W&M approved weighing programs are also available for both single- or multiple-component recipe batching.
Which weighing terminal fits best your requirements?
SysTec weighing terminals for liquid filling / barrel filling
7 good reasons for SysTec filling and batching terminals
- Simple operation of robust, W&M approved weighing terminals (IP69K)
- High performance through fast signal processing
- Accurate batching to target value
- Recording of all data of single- or multiple-container fills
- Optional PLC control over fieldbus or Modbus® TCP
- Adjustable to customer-specific operations and controls
- Simple integration into PC networks and printer interface
Reference report: automatic big bag filling line
W&M approved. Innovative. Fast.
High throughput guaranteed for big bag filling. SIBELCO chooses a fully automatic EMDE system with robot handling for cristobalite filling into big bags, successfully using SysTec's IT8000E legal-for-trade weighing terminal.
Reference report: double filling station
Fast filling of big bags with plastic granules
In a new petrochemical factory in Southeast Asia, big bags are filled with plastic granulates in double filling stations. High-performance SysTec weighing terminals of the IT8000E series are used for this purpose.
Typical fields of application
Food and feeding stuff: SysTec weighing terminals ensure high operative efficiency of filling and batching facilities in the food and agricultural sector.
Chemical and pharmaceutical: SysTec weighing terminals are suitable to fill both hazardous and non-hazardous substances to a large variety of containers.
Paints and varnishes: SysTec weighing terminals improve speed and accuracy of the filling material management and recipe-controlled batching.
Building material: SysTec weighing terminals guarantee maximum performance.
Loading of trucks and freight cars: SysTec weighing terminals integrate easily into truck-loading facilities.

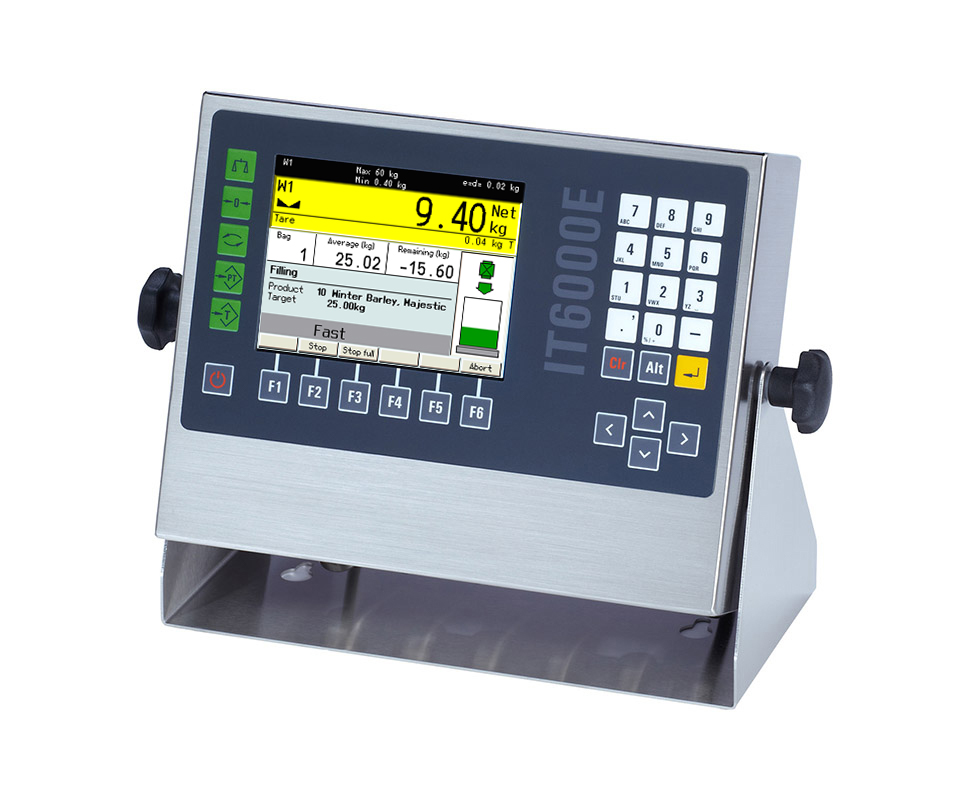

Configuration example with weighing terminal IT6000E BIGBAG
Configuration example with weighing terminal IT8000E BAG
Configuration example with weighing terminal IT4000E DOS

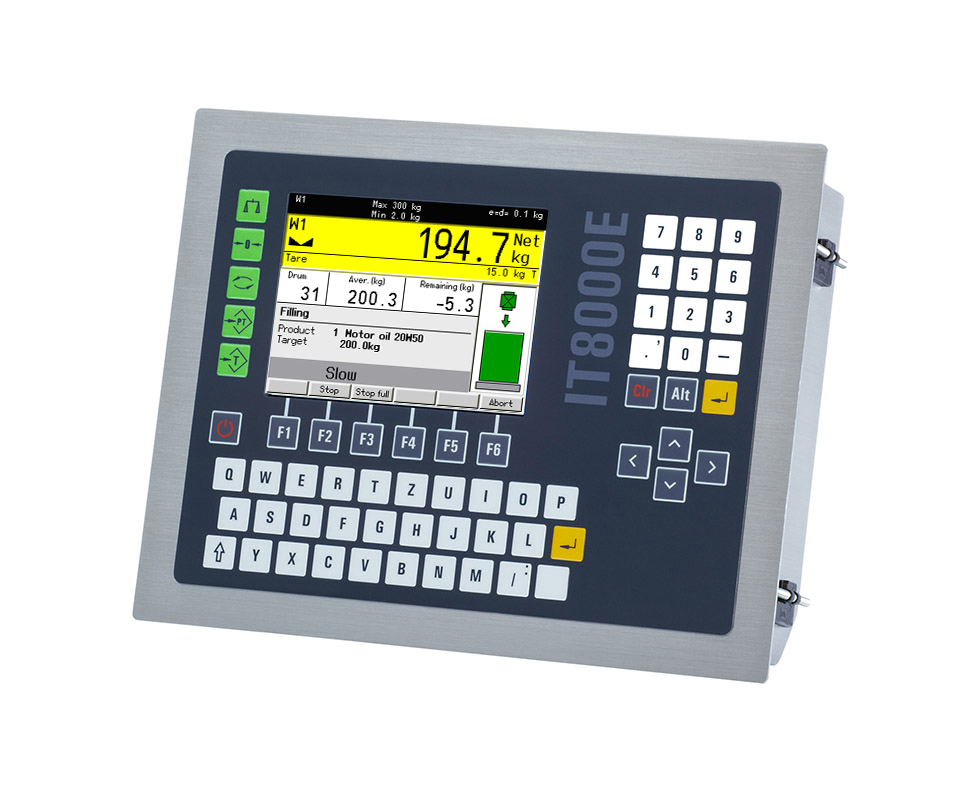

Configuration example with weighing terminal IT8000E FILL
| Model | IT1 FILL | IT2000M FILL | IT3 FILL2 | IT4000E DOS | IT6000E FILL | IT8000E FILL |
|---|---|---|---|---|---|---|
| W&M approved as AGFI | - | - | - | |||
| Number of scales | 1 | 1 | 1 | 1 | 2 | 2 |
| Valve control above level | ||||||
| Valve control below bung hole, partially below level, below level | - | - | - | |||
| Modbus/TCP | - | - | - | |||
| PROFIBUS DP / PROFINET / Ethernet/IP | - | - | - | - | ||
| Recording on printer | - | |||||
| Transmission to host | - | |||||
| Recording to file | - | - | - | |||
| Number of products | - | - | 10 | 10 | 99 | 99 |
| Custom-specific modifications | - | - | - | - | ||
| Control of drip pan | - | - | - |
| Model | IT2000M BAG | IT6000E BAG | IT8000E BAG |
|---|---|---|---|
| W&M approved as AGFI | |||
| Number of scales | 1 | 1 | 1 |
| Modbus/TCP | |||
| PROFIBUS DP / PROFINET / Ethernet/IP | - | ||
| Recording on printer | - | ||
| Transmission to host | - | ||
| Recording to file | - | ||
| Number of products | 99 | 99 | 99 |
| Custom-specific modifications | - | ||
| Subject to license | - | - | |
| Analog output (application) | |||
| Configurable I/Os | - | - | |
| Control of bag clamp | |||
| External product selection (1-4 or binary 1-15) | |||
| Product data via PLC | - | - |
